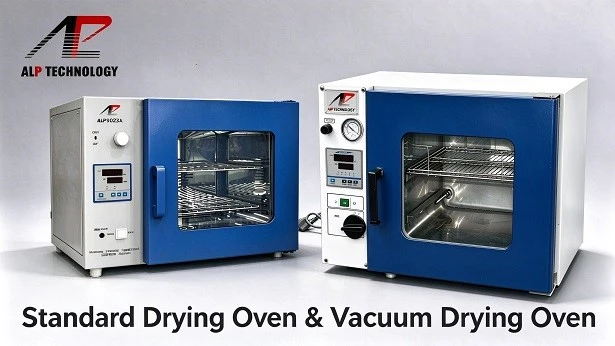

Standard Drying Oven & Vacuum Drying Oven

Standard Drying Ovens & Vacuum Drying Ovens

Engineered thermal solutions for research laboratories and industrial production lines. Two distinct platform designs, each matched to your material's thermal tolerance, atmospheric requirements, and batch capacity needs.

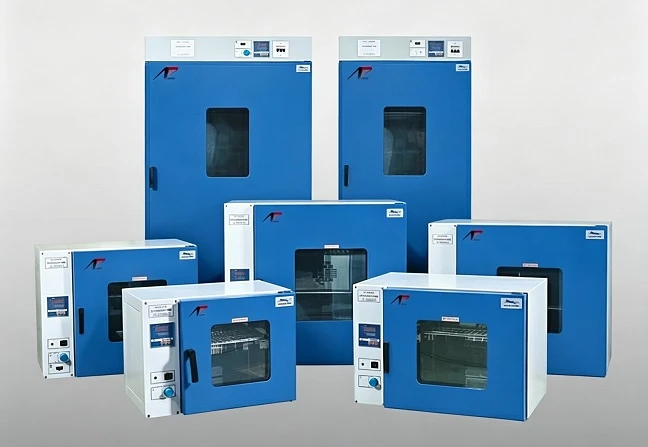

STANDARD DRYING OVENS (Forced-Air Thermal Processing)

Working Principle
Horizontal air-circulation design paired with microprocessor-driven PID temperature regulation. Well suited to specimens that tolerate ambient oxygen and remain stable at the oven's rated operating ceiling.

• Loss-on-drying gravimetric analysis
• Post-wash drying of glassware and instruments
• Pre-analysis thermal equilibration and sample conditioning
• Accelerated stability and thermal aging studies
• Curing and baking of heat-stable materials
• Dry-heat decontamination

• Electronics production - component bake-out, PCB pre-bake, fixture conditioning
• Pharma & clinical labs - glassware drying, preparation of heat-stable specimens
• Food & agriculture - moisture content testing, specimen preparation
• Chemical manufacturing - general drying and thermal treatment
• Universities & research centers - routine drying and instructional use

• Air-circulation system - even heat distribution across the chamber, reducing thermal variation
• Microprocessor PID regulation - tight setpoint accuracy and run-to-run consistency
• Programmable timer - automated cycles for standardized workflows
• Stainless steel inner chamber - resists corrosion, chemically inert, simple to sanitize
• Independent over-temperature cutoff - built-in safety circuit
• Range of chamber sizes - benchtop through floor-standing models

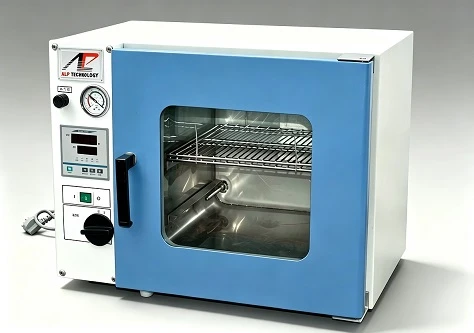

VACUUM DRYING OVENS (Low-Pressure Thermal Processing with Timing Control)

Working Principle
Microprocessor-governed heating inside a reduced-pressure or inert-gas environment. Supports low-temperature drying of thermally fragile materials while preventing oxidative damage during processing. This platform incorporates years of proprietary heat-transfer research, eliminating the conduction limitations found in earlier vacuum oven designs.

• Vacuum drying of moisture-absorbing, reactive, or oxygen-sensitive compounds
• Degassing of resins, adhesives, and composite prepregs
• Solvent stripping from synthesized compounds and intermediates
• Annealing and thermal aging in a controlled atmosphere
• Outgassing evaluation for vacuum-compatible materials
• Preservation of oxygen- and moisture-sensitive substances
• Drying of filter crucibles and analytical specimens

• Electronics & semiconductor - wafer drying, MSD bake-out, component processing
• Pharma & biotech - API drying, excipient handling, biological specimen preparation
• Chemicals & materials - polymer processing, ceramic and nanomaterial drying, battery electrode preparation
• Aerospace & automotive - composite curing, precision component pre-treatment
• Research institutes - controlled-atmosphere testing, annealing experiments

• Microprocessor regulation with built-in timing control - programmable temperature and duration profiles for repeatable process cycles
• Proprietary heat-transfer architecture - resolves the conduction bottlenecks of earlier vacuum ovens, delivering even chamber temperature distribution
• Warm-up time cut by more than half - versus conventional vacuum drying platforms
• Rectangular chamber geometry - enlarges usable cubage and per-batch sample capacity
• Vacuum-tight sealing system - adjustable door closure with closed-cell silicon gasket preserves vacuum integrity
• Multi-layer bulletproof tempered glass door - unobstructed viewing of chamber contents without sacrificing safety or vacuum performance
• Stainless steel (or wire-drawing sheet) chamber - robust build resistant to corrosion and chemical attack
• Inert gas ready - supports nitrogen or argon backfill for oxygen-free processing

ALP  Technology: One-Stop Customized Test Chamber Solutions



Different from ordinary standard testing equipment, ALP Technology focuses on independent R&D, production and customization of environmental test chambers. With core advantages of high precision, strong stability, diverse simulation functions and flexible personalized customization, our products cover constant temperature and humidity test chambers, thermal shock test chambers, high-altitude low-pressure test chambers, aging test chambers and other full-series products. Targeting the differentiated testing demands of various industries, ALP Technology provides one-stop professional testing solutions for global enterprises and research institutions, helping customers improve product quality, shorten R&D cycles, and gain market competitive advantages.
