Product Overview

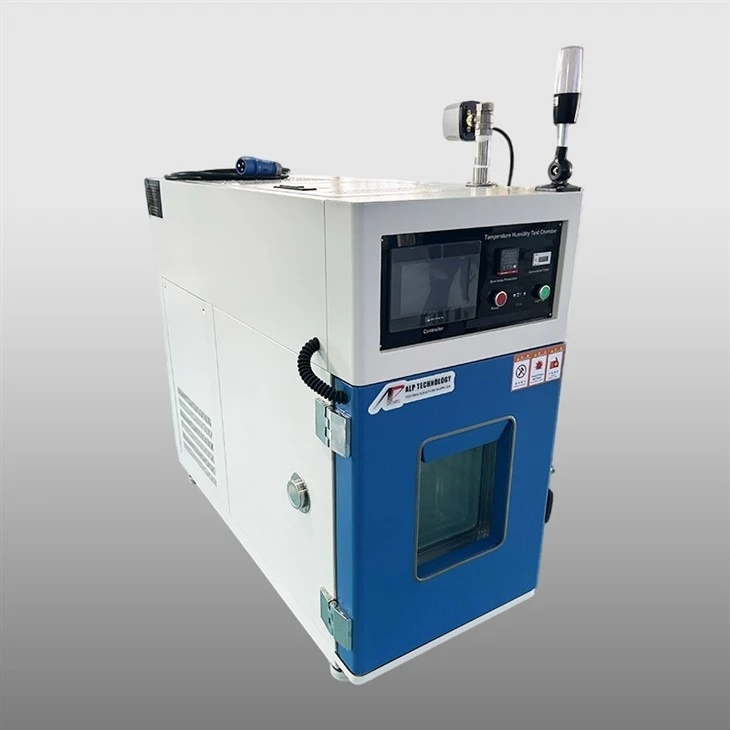

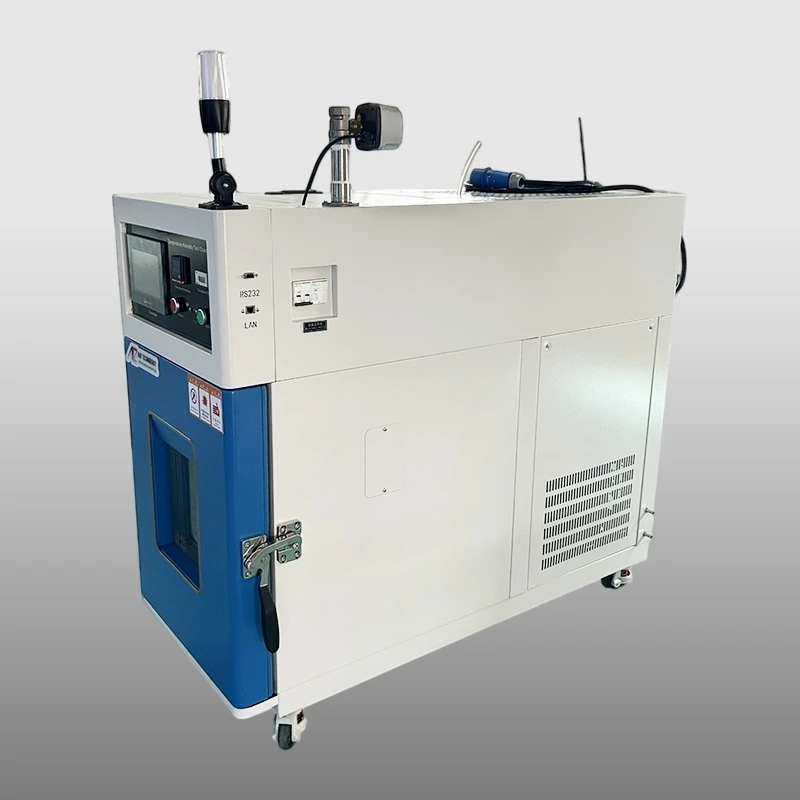

The Benchtop Temperature Test Chamber from ALP Technology is a compact, precision-engineered solution designed for reliability testing and environmental testing of electronic products, components, and materials. This benchtop temperature test chamber is particularly suited for the early product research and development stage, offering a small footprint without compromising on performance. It accurately simulates high and low-temperature cycling environments to evaluate how products resist thermal stress . Ideal for testing small electronic components, military products, and other dust-free materials, this chamber helps engineers identify weaknesses early, improve designs, and ensure product durability and reliability from the very beginning of the development cycle.

Product Features

ALP's Benchtop Temperature Test Chamber is constructed with high-quality materials and incorporates advanced features for precise, repeatable, and user-friendly operation:

Robust Construction: The inner chamber is made from durable SUS304 stainless steel, while the outer shell is constructed from cold-rolled steel plate with a spray treatment for enhanced durability and corrosion resistance.
Touch Screen Programmable Controller: A state-of-the-art controller allows for both constant value and programmable running modes. The screen clearly displays key data including set temperature, actual temperature, total running time, and segment residual time. It can automatically select the compressor's working status based on test parameters for optimal efficiency.
Excellent Visibility and Access: A large observation window on the chamber door provides clear visibility of samples during testing. Additionally, a test hole (available in 25mm, 50mm, or 100mm diameters) on the left side of the chamber allows for routing cables to power and monitor your device under test.
Superior Insulation: The chamber features a thick insulation layer composed of hard polyurethane foam and glass fiber, which minimizes temperature loss and ensures stable internal conditions.
Efficient Air Adjustment System: A forced air circulation system using a centrifugal fan ensures excellent temperature uniformity .
Reliable Refrigeration System: The chamber uses a world-renowned brand, fully closed compressor with eco-friendly R404A refrigerant for powerful and reliable cooling performance.
Smart Mobility: Fixable PU moving wheels are adopted on the bottom, allowing the benchtop unit to be easily moved and securely positioned wherever needed.

Applicable Test Standards

ALP's Benchtop Temperature Test Chamber is designed to comply with both National Standards and Military Standards, ensuring your test results are widely accepted for quality assurance and certification purposes. This makes it a versatile tool for a range of industries, including electronics, automotive, and defense.

Technical Specifications

Category	Parameter	25L Model (ALP-TWS-25)	64L Model (ALP-TWS64)
Interior Dimensions	(W × D × H) mm	250 × 300 × 350	400 × 320 × 500
Exterior Dimensions	(W × D × H) mm	Approx. 460 × 700 × 760	Approx. 730 × 1440 × 1180
Temperature	Temperature Range	-40℃ ～ +150℃	-40℃ ～ +150℃
	Temperature Fluctuation	±0.5℃
	Temperature Uniformity	≤2℃
	Temperature Deviation	±2℃
	Heating Rate (Avg, No Load)	1~3℃/min
	Cooling Rate (Avg, No Load)	0.7~1℃/min
Structure & Material	Exterior Material	Cold-rolled steel with electrostatic spray coating
	Interior Material	High-quality SUS304 stainless steel
	Cabinet Structure	Front-rear design, left-hinged door
	Test hole	One Φ50mm port on the side
	Pressure Relief / Exhaust	Top-mounted forced exhaust + pneumatic damper
Electrical & Control	Power Supply	AC 380V 50Hz 3-phase
	Controller	7" Weinview touch screen
	Communication Interfaces	RS485, Ethernet, USB
	Display Resolution	0.01℃ for temp, 0.1min for time
	Noise (at 1.5m distance)	≤75 dB
Other Features	Sample Shelves	2 layers, height adjustable
	Humidity Sensing Method	PT100 dry-wet bulb
	Water Refill	Automatic or manual
Key Components	Refrigeration Compressor	French TECUMSEH cascade unit
	Refrigeration Accessories	Danfoss, Castel, Emerson, etc.
	Electrical Components	Schneider, Omron, etc.
Safety Protections	Protection Functions	Overtemp, heater short circuit, compressor overpressure/overload/overtemp, leakage, phase sequence, fan overtemp, water dry-run, fault alarm

FAQ

Q1: What is the primary purpose of a benchtop temperature test chamber?

A: It is primarily used for reliability testing and environmental testing of small electronic products, components, and materials early in the R&D phase. It evaluates product performance under high and low-temperature cycling to ensure durability and reliability.

Q2: What standards does the ALP Benchtop Temperature Test Chamber comply with?

A: The chamber is designed to meet both National Standards and Military Standards, making it suitable for rigorous testing applications across various industries.

Q3: Can I power my test sample inside the chamber?

A: Yes. The chamber is equipped with a test hole (25mm, 50mm, or 100mm diameter) on its side, allowing you to safely route cables for powering and monitoring your device under test during operation.

Q4: What safety features are included?

A: The chamber is equipped with a high-quality controller that monitors system status. It also uses high-grade insulation materials to maintain safe external surface temperatures and includes protection features within its robust refrigeration and heating systems.

Q5: How do I move the benchtop chamber?

A: The unit is equipped with fixable PU moving wheels at the bottom, making it easy to move the chamber to different testing locations and lock it securely in place when operational.

Why Choose ALP Technology?

ALP Technology is a specialized factory with over 20 years of experience in manufacturing and exporting environmental test chambers . Our greatest advantage is the ability to customize a variety of non-standard test chambers according to specific customer requirements . From design to installation and maintenance, ALP is your trusted partner for reliable, precise, and adaptable environmental test solutions.
