Product Overview

ALP Technology's Walk-in Temperature Humidity Test Chamber is a large-scale, high-performance testing solution designed for evaluating the reliability and performance of oversized products, large batches of components, or complete assemblies under controlled temperature and humidity conditions. This walk-in temperature humidity test chamber provides a spacious interior that allows personnel to directly enter the working area for convenient setup, inspection, and monitoring . It is ideally suited for testing automotive parts, aerospace components, large electronic systems, new energy batteries, and other products that cannot be accommodated in standard chambers. By accurately simulating extreme temperature environments from -70°C to +150°C and humidity conditions from 10% to 98% RH , this chamber helps manufacturers identify design weaknesses, verify long-term durability under climatic stress, and ensure final product reliability before market release.

Product Features

ALP's Walk-in Temperature Humidity Test Chamber is engineered with robust construction and advanced features for precision, flexibility, and efficient operation:

Customizable Modular Construction: Panels are assembled with tongue and groove design using cam-latches and silicone sealant. Embedded metal banding links cam-latches together for a secure, strong unit. Chamber dimensions are tailored to customer specifications, accommodating virtually any test requirement .
Wide Performance Range: Standard models offer temperature range from -70°C to +150°C and humidity range from 20% to 98% RH, with optional ranges from 10% to 98% RH or even 5% to 98% RH with dehumidifier . Heating rates reach 2.0-5.0°C/min and cooling rates 0.7-3.0°C/min depending on model .
High Precision Control System: Features a programmable color touch screen controller (e.g., South Korea TEMI-1500 or equivalent) with multi-language support . It enables both fixed-value and complex multi-segment program operation, providing temperature accuracy of ±0.5°C and uniformity of ±2.0°C .
Durable Construction: Inner chamber is crafted from SUS304 stainless steel for excellent corrosion resistance; exterior from powder-coated cold-rolled steel. Insulated with rigid polyurethane foam (100-150mm thickness) plus rock wool or glass fiber for minimal temperature loss .
Energy-Efficient Refrigeration System: Utilizes powerful semi-hermetic compressors from world-renowned brands such as Germany Bock or Bitzer, with eco-friendly refrigerants R404A and R23 . Advanced refrigerant flow control technology can reduce energy consumption by up to 30% under low-temperature conditions .
Robust Safety Protections: Equipped with comprehensive safety features including compressor overpressure/overheating/overcurrent protection, over-temperature protection, earth leakage protection, phase sequence protection, and emergency stop with sound-light alarm .
User-Friendly Accessories: Includes double doors with anti-fog observation window, customizable cable ports, trouble lights, heavy-duty floor loading options, slopes for carts, and data recorders.

Applicable Test Standards

ALP's walk-in temperature humidity test chamber is designed to comply with a broad range of internationally recognized testing standards, ensuring your test results are globally accepted:

GB/T 2423.1 / IEC 60068-2-1: Test A: Cold
GB/T 2423.2 / IEC 60068-2-2: Test B: Dry Heat
GB/T 2423.3 / IEC 60068-2-78: Test Cab: Damp heat, steady state
IEC 60068-2-30: Damp heat, cyclic test
GJB 150.3 / GJB 150.4 / GJB 150.9: High temperature, low temperature, and damp heat tests for military equipment
GB/T 10586-89 / GB/T 10589-89: Technical conditions for humidity/low-temperature test chambers
ISO 16750-4: Road vehicles – Environmental conditions for electrical/electronic equipment

Technical Specifications

Parameter	Specification
Interior Dimensions	Customizable (e.g., L3000×W4000×H2100 mm; volumes from 9m³ to 60m³+)
Exterior Dimensions	Varies based on selected model
Temperature Range	-70°C ~ +150°C (variants: -40°C, -60°C)
Humidity Range	10% ~ 98% RH (20% ~ 98% RH standard; optional 5%-98% RH)
Temperature Accuracy	±0.5°C
Temperature Uniformity	±2.0°C (at no load)
Humidity Uniformity	±3% to ±5% RH
Heating Rate	2.0 ~ 5.0°C/min (depending on model)
Cooling Rate	0.7 ~ 3.0°C/min (depending on model)
Controller	Programmable color touch screen with multi-language support
Interior Material	SUS304 stainless steel
Exterior Material	Powder-coated cold-rolled steel or color steel plate
Insulation	Rigid polyurethane foam (100-150mm) + rock wool/glass fiber
Refrigerant	Eco-friendly R404A, R23, R508
Compressor	Germany Bock, Bitzer (semi-hermetic)
Cooling Type	Water-cooled or air-cooled
Power Supply	AC380V ±10%, 50/60Hz, 3-phase, 5-line

On-Site Service in Action

Before Installation: Preparation is key – our engineer verifies the site layout and equipment footprint before any work begins.

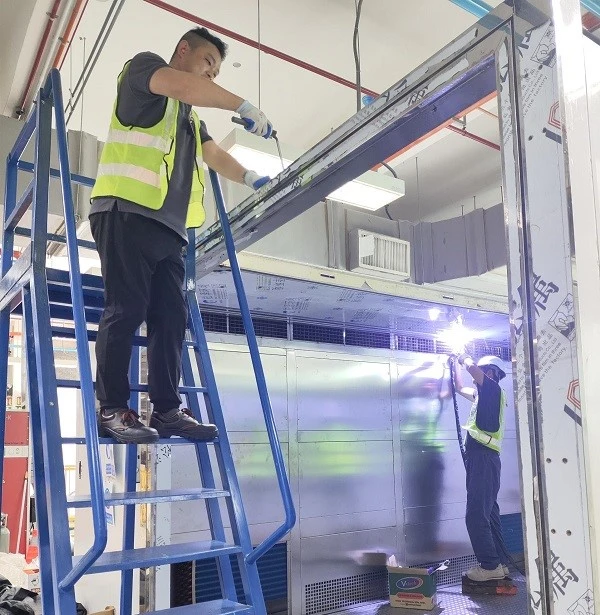

During Installation: Attention to detail – ALP Technology engineers assemble and connect the system with precision, adhering to all safety and quality standards.

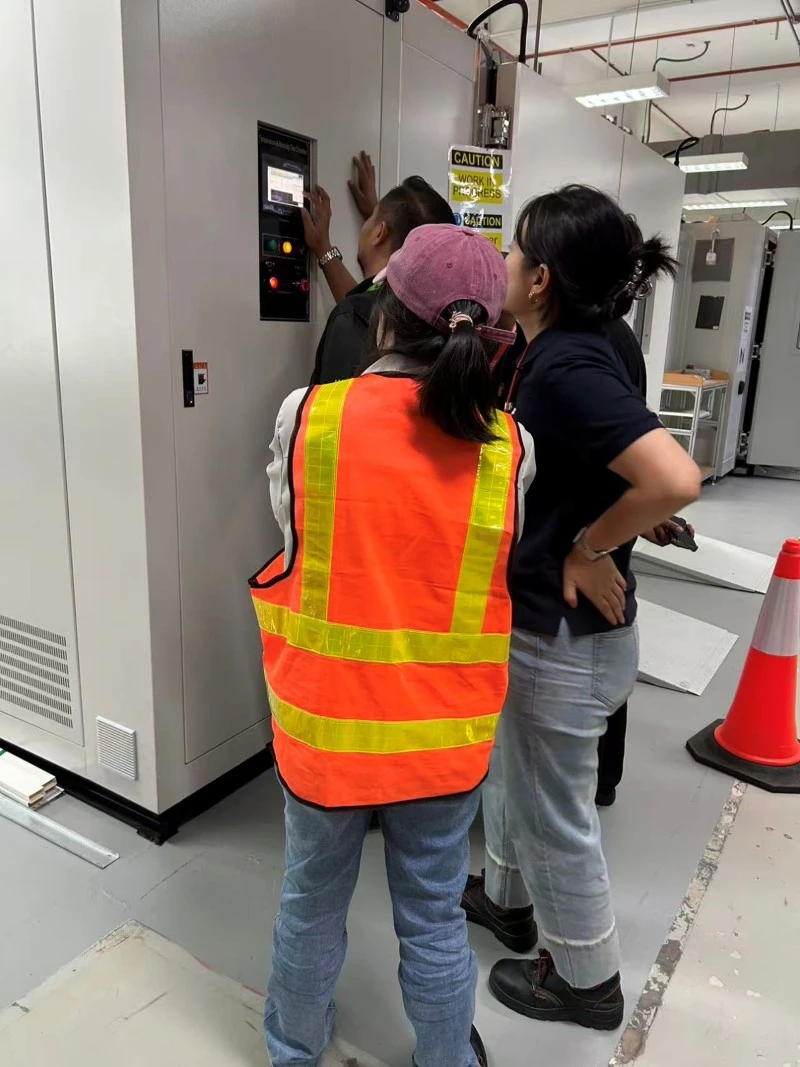

Post-Installation Training: Knowledge transfer in progress – our application engineer provides hands-on, one-on-one training to your operators, ensuring they master system operation and routine maintenance.

Choosing ALP Technology means choosing more than a precision testing chamber – you gain a reliable, experienced, and responsive technical partner. We are here to help you maximize your equipment's performance and safeguard your product quality at every step.

FAQ

Q1: What types of products are typically tested in a walk-in temperature humidity test chamber?

A: This chamber is used for testing oversized items like automotive parts, aerospace components, large electronic assemblies, solar panels, and complete equipment, as well as for batch testing of smaller components.

Q2: Can the chamber size be customized?

A: Yes. ALP's greatest advantage is the ability to customize a variety of non-standard test chambers according to customer requirements, including interior dimensions, temperature/humidity range, and performance parameters.

Q3: What is the energy-saving advantage of this chamber?

A: The advanced refrigeration system with electronic expansion valve technology can reduce energy consumption by up to 30% under low-temperature conditions compared to traditional designs.

Q4: What safety features are included?

A: The chamber includes comprehensive safety protections: compressor overpressure/overheating/overcurrent protection, over-temperature protection, earth leakage protection, phase sequence protection, fan motor overheating protection, and emergency stop with sound-light alarm.

Q5: What accessories are available?

A: Common options include double doors with viewing windows, customizable cable ports, slopes for carts, data recorders, water purifiers, dehumidifiers, and status indicator lamps.

Q6: Can tests be monitored during operation?

A: Yes. The chamber features large observation windows with anti-fog electric heating, interior lighting, and optional Ethernet communications for remote monitoring and software control.

Why Choose ALP Technology?

ALP Technology (T&M) Ltd is a specialized factory with over 20 years of experience in manufacturing and exporting environmental test chambers . We supply a comprehensive range including temperature/humidity, thermal shock, salt spray, sand/dust, UV, and walk-in chambers. Our greatest strength lies in our ability to customize non-standard test chambers according to your specific requirements, from design and production to installation and maintenance. With clients spanning government labs, Fortune 500 companies, and leading research organizations across 50+ countries, ALP delivers reliable, precise, and cost-effective test solutions backed by comprehensive warranty and lifelong follow-up services.
